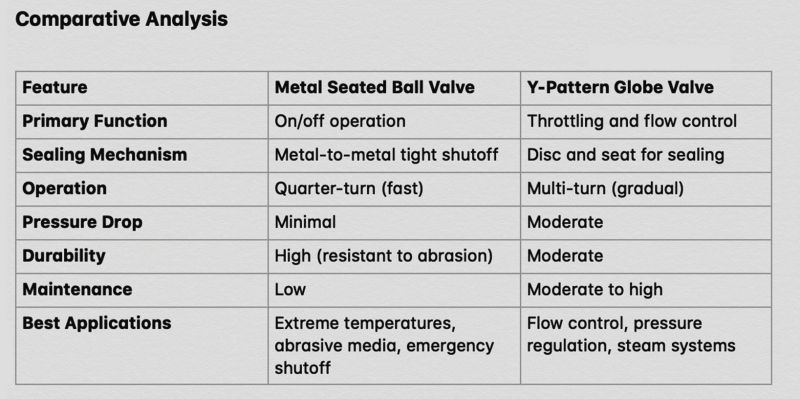

When selecting an industrial valve, choosing the right type is crucial for optimal system performance, reliability, and longevity. Two commonly used valve types for high-pressure and high-temperature applications are the metal seated ball valve and the Y-pattern globe valve. Each valve has unique characteristics, making them suitable for specific applications. This article compares their features and benefits to help you make an informed decision.

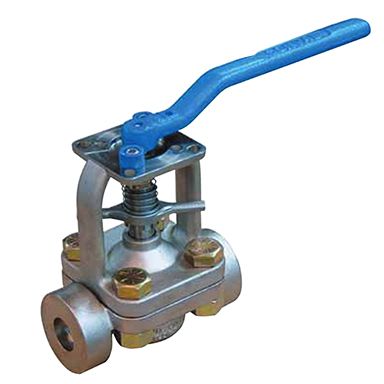

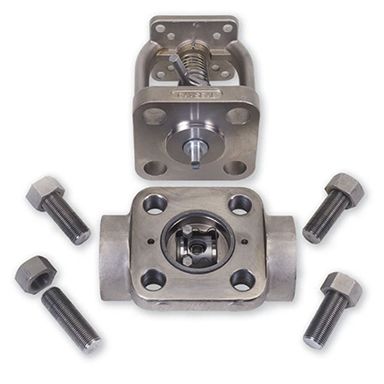

The Conval Camseal® ball valve offers a significant advantage in terms of maintenance and repairability. Its top-entry, cartridge-style design allows technicians to perform in-line servicing efficiently. By removing just two cam screws, the entire cartridge assembly can be replaced without the need to cut the valve out of the pipeline, restoring the valve to a "like-new" condition. This design not only minimizes downtime but also reduces maintenance costs, as the in-line servicing can be completed in approximately 30 minutes. Additionally, the robust engagement between the one-piece stem and ball ensures reliable and accurate alignment, contributing to the valve's zero-leakage performance.
Metal Seated Ball Valves
Features:
Robust Construction: Designed with a metal-to-metal sealing surface, these valves are built to withstand extreme temperatures and corrosive environments.
Tight Shutoff: They offer excellent sealing performance, making them ideal for applications requiring zero leakage.
Fast Operation: With a quarter-turn mechanism (90-degree rotation), they provide quick opening and closing.
High Durability: The metal seat provides resistance to wear and tear, ensuring long service life even in abrasive media.
Flow Efficiency: They have a straight-through flow path, minimizing pressure drops and turbulence.
Metal Seated Ball Valve Benefits:
- Suitable for extreme conditions, including high temperatures (up to 1000°F) and high pressures.
- Ideal for handling slurries, viscous fluids, and abrasive media due to their wear-resistant properties.
- Lower maintenance requirements compared to other valve types due to fewer moving parts.
- Quick shutoff capability reduces response time in emergency situations.

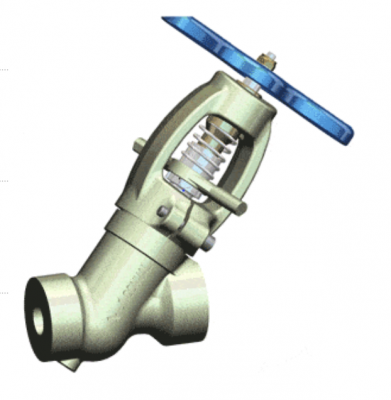

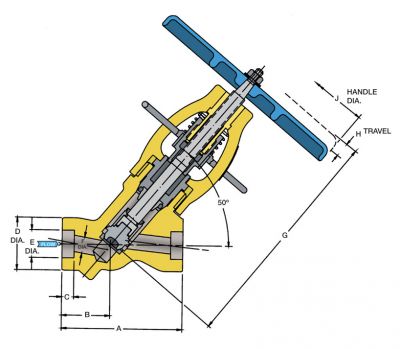

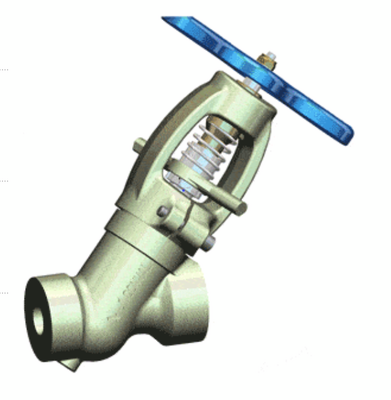

Y-Pattern Globe Valves
Features:
Linear Motion Mechanism: Uses a disc and seat for flow regulation, offering precise throttling control.
Y-Pattern Design: Reduces pressure drop compared to traditional globe valves while maintaining good flow control characteristics.
Tight Seal: Provides reliable shutoff capabilities when properly maintained.
Moderate Opening and Closing Time: Unlike ball valves, they require multiple turns to fully open or close, reducing the risk of water hammer.
Good for Flow Modulation: Unlike metal seated ball valves, they allow better flow control for throttling applications.
Y-Pattern Globe Valves Benefits:
- Preferred for applications requiring precise flow regulation rather than simple on/off control.
- More effective at handling pressure fluctuations due to the linear flow adjustment mechanism.
- Suitable for moderate to high-pressure applications, particularly in steam and water systems.
- Less prone to cavitation in applications with varying flow rates.
Conclusion
Choosing between a metal seated ball valve and a Y-pattern globe valve depends on the specific requirements of the application. If you need a durable valve for high-temperature and high-pressure conditions with minimal maintenance and quick operation, the metal seated ball valve is the ideal choice. However, if precise flow control and pressure modulation are the primary concerns, a Y-pattern globe valve is more suitable.
Understanding each valve type's strengths and limitations ensures optimal performance and longevity. Consider fluid type, pressure, temperature, and operational requirements when selecting a valve. If you have a “fully-open/fully-close” application, Conval’s Camseal® Metal Seated Ball Valve is a strong choice, as its top-entry design allows in-line maintenance, saving time and money over the lifetime of the valve.
